CBP50 Series
PCB Tri-Barrier Terminal-Blocks
15A 300VAC
Pitch: 11mm
Poles: 2P~32P
| Rating | 15A 300VAC |
| Terminal | Brass, 0.8t, Tin Plated |
| Body Material | Plastic NYLON 66, Black (UL 94V-0) |
| Screw | Steel, M4, Nickel Plated |
| Working Temperature | -40˚C to +105˚C |
| Insulation withstand Voltage | AC2000V at 1 min |
| Insulation resistance | 500MΩ or more at DC 500V |
| Wire Range | 22~12 AWG |
| Max. Torque Value | 18Kg/cm |
| Number of Positions | 2P~32P |
| Pitch | 11mm |
| CBP50-01 Dimension |
 |
CBP50-02 Dimension |
 |

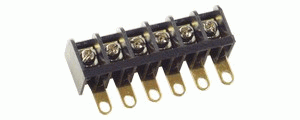

| CBP50-03 Dimension |
 |
CBP50-04 Dimension |
 |
| CBP50-05 Dimension |
 |
