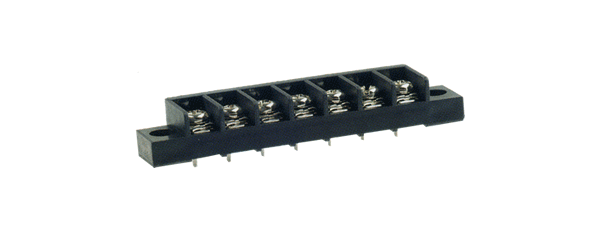

CBP90 Series
PCB Tri-Barrier Terminal-Blocks
15A 300VAC
Pitch: 9.5mm
Poles: 2P~32P

Rating | 15A 300VAC |
Terminal | Brass, 0.8t, Tin Plated |
Body Material | Plastic NYLON 66, Black (UL 94V-0) |
Screw | Steel, M3.5, Nickel Plated |
Working Temperature | -40˚C to +105˚C |
Insulation withstand Voltage | AC2000V at 1 min |
Insulation resistance | 500MΩ or more at DC 500V |
Wire Range | 22~12 AWG |
Max. Torque Value | 12Kg/cm |
Number of Positions | 2P~32P |
Pitch | 9.5mm |


CBP90-01 Dimension |
![]() |
CBP90-02 Dimension |
![]() |
CBP90-03 Dimension |
![]() |
CBP90-04 Dimension |
![]() |
CBP90-05 Dimension |
![]() |
CBP90-06 Dimension |
![]() |
CBP90-07 Dimension |
![]() |
CBP90-08 Dimension |
![]() |
