CB4-30A
Double Row Terminal Blocks
Pitch: 14mm
Poles: 2P~24P
| Product Type | Barrier Strip, Double Row |
| Model Number | CB4-30A |
| Rating | 30A 300VAC |
| Terminal | Brass, Nickel Plated 0.8t |
| Body Material | Plastic NYLON 66 (UL 94V-0) |
| Screw | Steel, M4, Nickel Plated Brass |
| Working Temperature | -40˚C to +105˚C |
| Insulation withstand Voltage | AC2000V at 1 min |
| Insulation resistance | 500MΩ or more at DC500V |
| Wire Range Awg | 12~18 STR |
| Max. Torque Value | 18Kg/cm |
| Number of Rows | 2 |
| Number of Positions | 2P~24P |
| Pitch | 14mm |

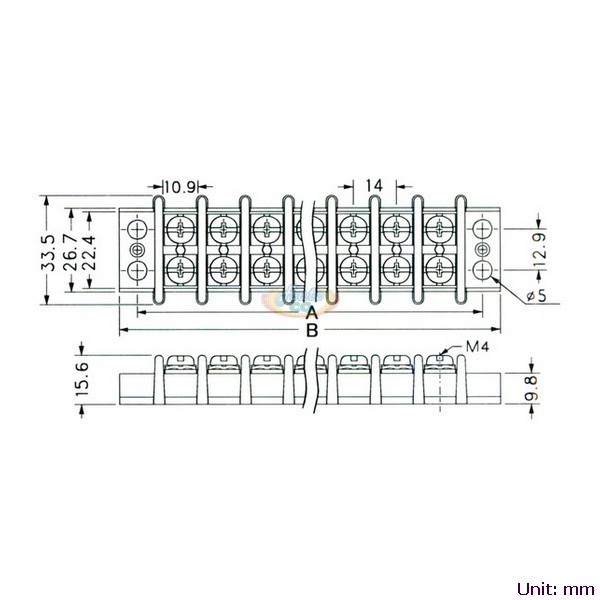

| Dimension |  |
| P: # of Poles | |
| UNIT: mm | |
| Poles | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| A (mm) | 42 | 56 | 70 | 84 | 98 | 112 | 126 | 140 | 154 |
| B (mm) | 52 | 66 | 80 | 94 | 108 | 122 | 136 | 150 | 164 |
| Poles | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 |
|---|---|---|---|---|---|---|---|---|---|
| A (mm) | 168 | 182 | 196 | 210 | 224 | 238 | 252 | 266 | 280 |
| B (mm) | 178 | 192 | 206 | 220 | 234 | 248 | 262 | 276 | 290 |
| Poles | 20 | 21 | 22 | 23 | 24 | ||||
|---|---|---|---|---|---|---|---|---|---|
| A (mm) | 294 | 308 | 322 | 336 | 350 | ||||
| B (mm) | 304 | 318 | 332 | 346 | 360 |
